Introducing our high-performance PTO Drive Shaft, the essential component for agricultural, industrial, and commercial machinery applications requiring reliable power transmission. Designed to meet the rigorous demands of modern machinery, our PTO Drive Shaft ensures optimal efficiency, durability, and safety, providing you with the confidence to tackle any task with ease.

Agricultural PTO drive shaft, closed length 615mm. Universal joint cross size Φ32×88mm, yoke dimension 104mm. Made of 25CrMo4 alloy steel with heat‑treatment for high torsion resistance.

Overview

A Power Take-Off (PTO) Drive Shaft is a mechanical device that transfers engine power from a tractor or other machinery to implements and attachments, such as mowers, balers, augers, and more. This innovative solution is engineered to convert rotary motion into mechanical power, enabling seamless operation while enhancing productivity on your farm or job site.

PTO Drive Shaft Specifications

PTO Drive Shaft Types

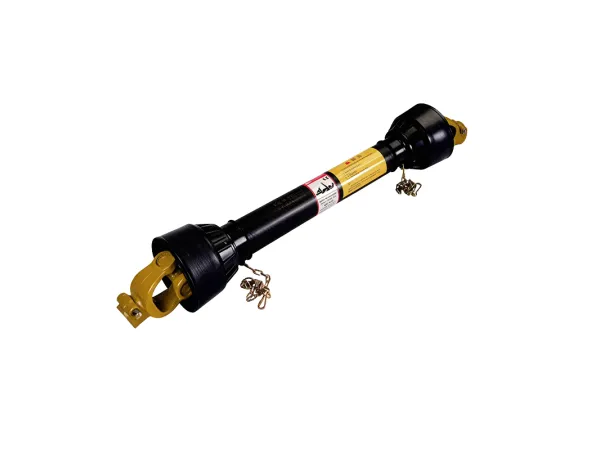

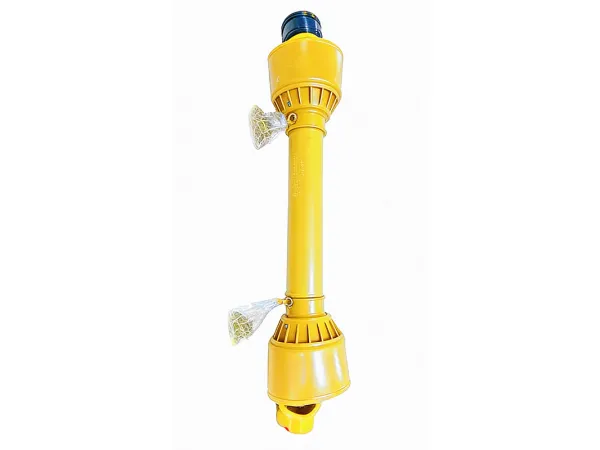

Agricultural PTO Drive Shaft

Agricultural PTO drive shafts are designed for power transmission between tractors and common PTO-driven implements. Different models can be selected according to tractor horsepower, PTO speed, working length and implement requirements.

Typical applications include rotary tillers, flail mowers, rotary cutters, balers, fertilizer spreaders and other agricultural machinery.

Heavy Duty PTO Drive Shaft

Heavy-duty PTO drive shafts are designed for equipment operating under higher torque and heavier working loads. Reinforced tubes, yokes and cross joints provide a suitable configuration for demanding agricultural applications.

They are suitable for heavy rotary tillers, flail mowers, rotary cutters, wood chippers and other high-load machinery.

PTO Drive Shaft Assembly

A complete PTO drive shaft assembly integrates shaft tubes, yokes, universal joints and other required components into one driveline. This type is suitable for buyers looking for a complete replacement assembly rather than individual PTO shaft components.

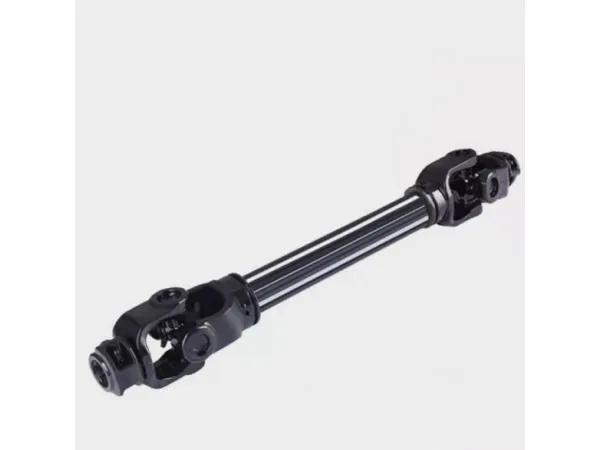

Universal Joint Drive Shaft

Universal joint drive shafts use cross-and-bearing assemblies to transmit rotational power while allowing changes in alignment between the tractor and implement. Different universal joint sizes and shaft configurations can be selected according to torque, PTO speed and equipment requirements.

Universal Joint Drive Shaft Assembly

A universal joint drive shaft assembly combines the shaft, universal joints and related components into a complete power transmission unit. It can be supplied for heavy agricultural and other machinery requiring reliable rotational power transfer.

Lightweight PTO Drive Shaft

Lightweight PTO drive shafts are designed for applications where reduced driveline weight is important while maintaining the required power transmission capability. They can be considered for compatible agricultural machinery with lower or moderate torque requirements.

Key Features

1. Robust Construction: Our PTO Drive Shaft is crafted from high-quality materials, including high-strength steel and precision engineering techniques, ensuring a long-lasting and durable product that can withstand the toughest working conditions. The corrosion-resistant finish protects against rust and wear, guaranteeing a prolonged service life.

2. Versatile Compatibility: The PTO Drive Shaft is designed to fit various tractors and implements from leading manufacturers. With different sizes and configurations available, you can find the perfect match for your equipment needs. Our product is suitable for agricultural machinery, landscaping tools, construction equipment, and more, making it a must-have for diverse industries.

3. Safety Features: Safety is paramount in any machinery operation. Our PTO Drive Shaft is equipped with critical safety features, including guards that prevent accidental contact with rotating parts and quick-release mechanisms for effortless attachment and detachment. These safety measures help minimize the risk of injury, ensuring peace of mind while you work.

4. Easy Installation and Maintenance: Designed with user-friendliness in mind, our PTO Drive Shaft allows for quick and straightforward installation with minimal tools required. The straightforward assembly process helps to reduce downtime, enabling you to get back to work faster. Additionally, routine maintenance is effortless, with accessible grease fittings that simplify lubrication for optimal performance.

5. High Efficiency: Our PTO Drive Shaft is engineered to maximize power transfer efficiency, reducing energy loss during operation. With improved torque capability, you can expect better performance from your equipment, allowing for faster and more efficient processing of tasks, whether on the farm or in the field.

6. Customizable Options: Recognizing that each application is unique, we offer customizable options to suit your specific needs. From varying lengths and sizes to tailored attachments, you can configure your PTO Drive Shaft to optimize function and compatibility with your equipment.

Main Components of a PTO Drive Shaft

A complete PTO Drive Shaft consists of several components that work together to transfer power from the tractor to the implement.

PTO Yokes

PTO yokes connect the drive shaft with the tractor PTO and implement input shaft. The connection and spline configuration should match the corresponding equipment.

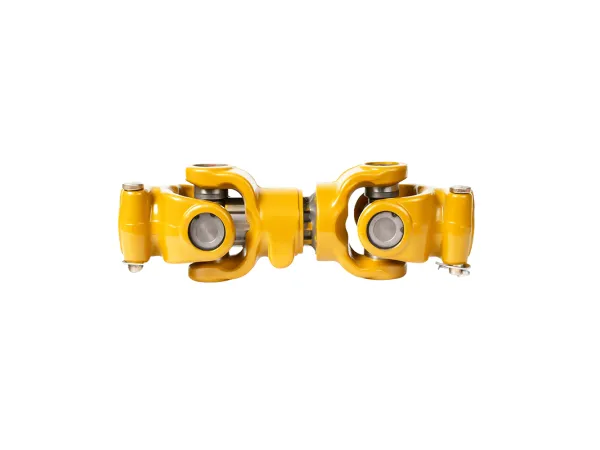

Universal Joints

Universal joints allow rotational power to be transmitted while accommodating changes in alignment between the tractor and implement.

Telescopic Tubes

Inner and outer tubes slide relative to each other, allowing the PTO drive shaft to accommodate changes in distance between the tractor and implement.

Cross Kits

Cross kits provide the pivoting movement required by universal joints and are important for stable shaft operation.

Safety Guards

Protective guards cover rotating driveline components and provide an additional safety barrier during operation.

Torque Protection Devices

Friction clutches, torque limiters and shear-bolt devices can be configured for applications requiring protection against excessive torque or shock loads.

For individual components and related driveline products, see our PTO Shaft Parts range.

PTO Drive Shaft Applications

Rotary Tillers

PTO drive shafts transfer tractor power to rotary tiller gearboxes and rotors for soil preparation and cultivation.

For compatible tiller equipment, Jinbei also supplies Rotary Tiller Blades for agricultural machinery.

Flail Mowers

PTO drive shafts transmit rotational power to flail mower rotors used for grass cutting, weed control and vegetation management.

Rotary Cutters

Suitable PTO drive shafts provide power transmission for rotary cutters used in grass and vegetation cutting.

Balers

PTO drive shafts provide continuous mechanical power transmission for balers during crop collection and baling operations.

Fertilizer Spreaders

PTO drive shafts can drive spreading mechanisms on compatible fertilizer spreaders.

Agricultural Sprayers

Suitable PTO shaft configurations can transmit tractor power to PTO-driven pumps and other spraying mechanisms.

Forestry and Biomass Equipment

Heavy-duty PTO drive shafts can be configured for compatible forestry mulchers, wood chippers and biomass-processing equipment.

Conclusion

Our PTO Drive Shaft is more than just a component; it’s a vital part of your machinery that enhances performance, efficiency, and safety. With its robust construction, versatile compatibility, and user-friendly features, it has become a trusted choice for professionals in agriculture, construction, and landscaping sectors. When you invest in our PTO Drive Shaft, you’re not just purchasing a product—you’re enhancing your operational capabilities and ensuring that your machinery performs at its best.

Transform your power transmission needs with our high-quality PTO Drive Shaft today and experience the difference that superior engineering makes in your daily operations. Whether you’re working on the farm, in industrial applications, or tackling landscaping projects, our PTO Drive Shaft offers the performance and reliability you can count on. Don't compromise on quality—choose our PTO Drive Shaft for exceptional power transfer solutions.

Jinbei supplies PTO Drive Shaft solutions for tractors and PTO-driven agricultural machinery. A PTO drive shaft transfers rotational power from a tractor's power take-off to connected implements, making it an important transmission component for rotary tillers, flail mowers, rotary cutters, balers, fertilizer spreaders and other agricultural equipment.

Our PTO drive shaft range covers agricultural PTO drive shafts, heavy-duty PTO shafts, universal joint drive shafts and complete PTO drive shaft assemblies. Different working lengths, spline configurations, universal joints, yokes and safety protection options can be supplied according to equipment requirements.For OEM and replacement projects, Jinbei supports customized production based on equipment models, OEM part numbers, technical drawings and original samples.



How to Choose the Right PTO Drive Shaft

Choosing a PTO drive shaft requires matching the tractor and implement specifications rather than selecting a shaft only by overall length.

Check the Tractor PTO

Confirm the following tractor-side parameters:

● PTO speed

● PTO shaft diameter

● Spline count

● Spline profile

● Tractor horsepower

Check the Implement Input

The implement-side connection should also be confirmed:

● Input shaft size

● Spline configuration

● Connection method

● Yoke specification

● Required torque capacity

Confirm the Shaft Length

Provide the required:

● Closed length

● Extended length

● Working length

● Telescopic overlap

Consider the Operating Load

The PTO drive shaft should be matched according to:

● Tractor horsepower

● PTO speed

● Operating torque

● Shock loads

● Working angle

● Operating hours

● Implement type

A properly matched PTO drive shaft helps maintain stable power transmission and reduces unnecessary wear on the driveline.

Standard vs Heavy Duty PTO Drive Shaft

Heavy-duty PTO drive shafts are intended for higher torque, heavier loads and demanding working conditions. The correct shaft should ultimately be selected according to the actual equipment requirements rather than horsepower alone.

Custom PTO Drive Shaft

Jinbei provides custom PTO Drive Shaft manufacturing for agricultural machinery manufacturers, distributors and aftermarket parts suppliers.

Customization can be based on:

● Equipment model

● OEM part number

● Original sample

● Technical drawing

● Tractor PTO specification

● Implement input specification

● Shaft length

● Spline configuration

● Universal joint size

● Required torque

● Safety protection requirements

Custom Options

PTO Drive Shaft Manufacturing

Jinbei manufactures PTO drive shafts through forging, machining, heat treatment and assembly processes.

Material Selection

Carbon steel and alloy steel can be selected according to the required strength, toughness and operating conditions.

Forging

Key components such as yokes are precision forged to achieve the required structural shape and mechanical strength.

Machining

Spline connections, mounting features and other critical dimensions are machined according to technical requirements.

Heat Treatment

Selected components undergo controlled heat treatment to achieve the required hardness, strength and toughness.

Assembly

Universal joints, shaft tubes, yokes, protective guards and other components are assembled according to the required PTO drive shaft configuration.

Final Inspection

Finished PTO drive shafts can be inspected for:

● Overall dimensions

● Spline configuration

● Working length

● Universal joint movement

● Assembly condition

● Protective guard installation

● Surface quality

Why Choose Jinbei for PTO Drive Shafts?

Jinbei supplies PTO drive shafts and agricultural driveline components for tractor and farm machinery applications.

Our capabilities include:

● Agricultural PTO drive shafts

● Heavy-duty PTO drive shafts

● Universal joint drive shafts

● PTO drive shaft assemblies

● Lightweight PTO drive shafts

● Safety-protected PTO shafts

● Custom OEM production

● Drawing-based manufacturing

● Sample-based development

● Bulk production

● OEM packaging

For replacement or OEM projects, customers can provide an original shaft, technical drawing, equipment model or OEM part number for configuration evaluation.

Frequently Asked Questions

What is a PTO Drive Shaft?

A PTO Drive Shaft is a mechanical driveline component that transfers rotational power from a tractor's power take-off to a connected agricultural implement.

What equipment uses PTO drive shafts?

PTO drive shafts are commonly used with rotary tillers, flail mowers, rotary cutters, balers, fertilizer spreaders, sprayers and other PTO-driven agricultural machinery.

How do I choose the right PTO Drive Shaft?

Confirm the tractor PTO specification, implement input connection, spline configuration, PTO speed, working length, torque requirement and operating angle before selecting a shaft.

What is the difference between a standard and heavy-duty PTO shaft?

A heavy-duty PTO drive shaft is designed for higher torque, heavier loads and more demanding working conditions, generally using larger or reinforced driveline components.

Can the PTO Drive Shaft length be customized?

Yes. Shaft length, tube configuration, spline connections and other dimensions can be customized according to equipment requirements.

Can Jinbei manufacture PTO Drive Shafts from samples?

Yes. Jinbei can evaluate replacement or OEM production based on original samples, technical drawings, equipment models or OEM part numbers.

What information is needed for a PTO Drive Shaft quotation?

Provide the tractor model, implement model, PTO speed, spline specification, shaft length, OEM part number or original shaft sample and required quantity.

Get the Right PTO Drive Shaft for Your Equipment

Looking for a PTO Drive Shaft for a tractor, rotary tiller, flail mower, baler or other agricultural machine?

Send Jinbei your equipment model, PTO specification, shaft dimensions, OEM part number or original sample.

● Request a PTO Drive Shaft Quote

● Send Your Shaft Drawing

● Request a Custom PTO Drive Shaft
